Why My Pit Boss Grill Keeps Blowing Fuse + How To Fix [Solved]

Your Pit Boss pellet grill keeps blowing fuse because any of the elements of your grill is drawing too much power from your circuit board. While drawing excessive power, the fuse amp gets overloaded leading the fuse to blow out.

why pit boss pellet grill keeps blowing fuse

However, to know, why your Pit Boss grill keeps blowing fuse in detail, how to identify the causes, and fix these issues to prevent further damage, go on reading…

Why My Pit Boss Grill Keeps Blowing Fuse + How To Prevent

The most common reasons behind the Pit Boss grill blown fuse are excessive AMP load, draft fan issue, blown circuit breaker, faulty ignitor, and defective auger system.

how to prevent pit boss grill fuse from blowing out

Due to all these factors, an overload of power circulation happens and causes your grill fuse to blow up. Below we have explained everything and simple solutions:

Note: You can also read our Pit Boss temperature problems solution guide to fix any pit Boss temperature issues by yourself.

1. Excessive AMP Load

In simple words, the Pit Boss fuse blows when the supply of electricity is more than needed. An overflow of electricity can come from the power supply board on its own.

Even if all the components are working fine, this type of situation can arise. Though this is very unlikely to happen, it’s a possibility.

How To Prevent It:

Preventing this type of problem is very simple. Just have a look at the main power supply system of your house. Call up an expert to examine the problems. If they detect any misconduct going on, then that’s the thing you have to take care of.

Although, you should know that it’s a risky task. So it’s better to leave this part of the problem to the professionals. Paying the electrician only a few extra bucks will save you from unnecessary difficulties.

2. Draft Fan Issue

The draft fan is one of the major components of the Pit Boss grill. This part of the unit is directly connected to the fuse with a yellow wire.

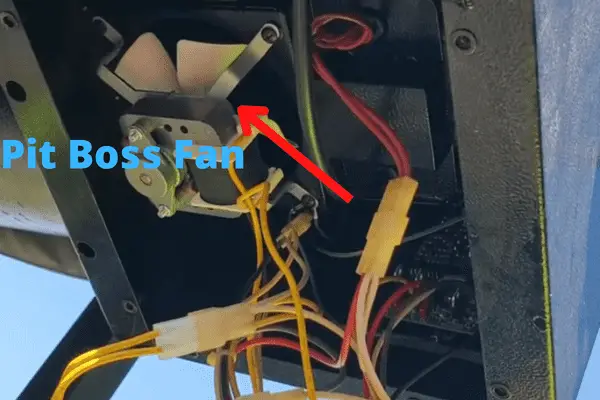

faulty pit boss draft fan blows fuse

The draft fan is supposed to consume 120V, 0.1 AMP power at 50/60 Hz. The fuse blows if the draft fan pulls more than this amount of electrical power. This usually happens at the startup.

How To Prevent It:

If you discover that the fan is the culprit ( how to know which part is the culprit? You will find more on this in the next part of the article), then replace it. Here’s how to replace the Pit Boss grill draft fan:

  • Locate the draft fan under the auger
  • Disconnect all the wire-connection for the auger fan
  • Remove the 4 screws holding the auger fan
  • Disconnect the Molex connector before removing the fan
  • Take a new draft fan and put it in the position of the draft fan
  • Attach all the wires before screwing the fan in its place

Once you have installed the draft fan perfectly, you won’t have to worry about your Pit Boss grill fuse again.

3. Blown Circuit Breaker

Your house’s central circuit breaker can blow up and result in a power outage. However, a tripped circuit breaker can still leave power in a particular part of your house. The areas where the circuit remains unaffected generate too much electricity.

tripped circuit breaker

If your Pit Boss smoker is in one of such areas, the fuse of the circuit board will definitely blow up due to too much flow of current.

How To Prevent It:

Resetting the circuit breaker will prevent your Pit Boss fuse from blowing up again. Here’s how to reset it:

  • Locate the gray metal box of your circuit breaker. If you don’t know where it is in the house, ask your landlord
  • Open the side panel of the gray box and locate the tripped breaker
  • Look closely to find the breaker that has shifted from the ON position. That’s the tripped breaker
  • Once you have identified the faulty circuit breaker, turn off all the electrical appliances in your house
  • Now push the tripped breaker to the ON position

After this, your house will have an ideal supply of electricity. This saves your Pit Boss fuse from blowing up as well.

4. Faulty Ignitor

Just like the draft fan, the ignitor is another major component of the Pit Boss grill. It consumes 200W, 2.6 AMPs, and 120V of electricity.

pit boss pellet grill  ignitor

If the ignitor is faulty for some reason, it will demand more electricity and blow up the fuse in the process.

How To Prevent It:

You should replace a faulty ignitor right before you replace the Pit Boss fuse. Here’s how to change the Pit Boss ignitor:

  • Remove the frames and grates in the smoker grill
  • Use a Phillips screwdriver to remove the screws on the firepot
  • Once you have access to the ignitor, unscrew it from its place
  • After unscrewing, pull out the ignitor through the burn-tube hole
  • Disassemble the bottom plate from the bottom of the pellet hopper
  • Detach all the wirings and remove the faulty ignitor from its place
  • Take a new Pit Boss ignitor
  • Reverse this process to install the new ignitor
  • Put everything back to where they were

Now you can rest assured that your Pit Boss fuse won’t blow up again due to a faulty ignitor.

5. Defective Auger Motor

The Auger motor takes 120V, 0.22 AMP of electricity at 50/60 Hz. This part of the unit is directly connected to the fuse through a red wire.

pit boss defective auger motor

So if this auger motor is faulty, it will consume excessive power through the fuse. As a result, the fuse will blow up.

How To Prevent It:

Replace the faulty auger motor before replacing the fuse. Here’s how to do it,

  • Locate the auger at the backside of the Pit Boss grill
  • Unscrew the bolts holding the motor there
  • Detach the wires connected to the auger motor
  • Pull out the auger motor
  • Set a new auger motor in its place
  • Reinstall all the wiring
  • Screw up the bolts the way it was before

Now your Pit Boss auger motor won’t take excessive electricity. Hence, there won’t be a blown fuse. And with this, the list of reasons ends. There are usually no causes behind Pit Boss blown fuse other than these.

How To Identify The Culprits Behind Pit Boss Fuse Blowing

You can easily identify what’s causing the fuse blow-up in your Pit Boss grill using a multimeter. It will help you to fix the issue quickly. Here’s how to do it:

Step 1: Get A Multimeter

You need to use a multimeter to detect the part causing the fuse to blow up. The multimeter tells the amount of voltage a wire conveys to its designated part.

check the voltage using a multimeter to find the blown fuse cause

Once you find out the voltage rate, you can determine which component is the reason behind blowing up your Pit Boss fuse.

Step 2: Using The Multimeter

Firstly, turn off the whole unit. Then set the dial on the multimeter to V. Now you have to use the multimeter for each wire. There are 3 cables in total: black, purple, and red.

Touching the multimeter’s red probe to these wires will show the amount of voltage each wire conveys. Here’s what each wire directs:

Device Wire
Auger MotorRed
Draft FanYellow

Step 3: Checking The Results

Now you have to note down the voltage rate of these wires. If any wires show a rate higher than 120V, you can declare that its designated part is faulty.

For example, if the red wire shows more than 120 V on the multimeter, you can conclude that the auger motor is the reason your Pit Boss grill keeps blowing the fuse. The same goes for the other two wires.

You can watch the tutorial to know how to use the multimeter to check the voltage.

Once you have identified the culprit, make sure to change or fix it before replacing the fuse with a new one.

7 Steps For Pit Boss Pellet Grill Fuse Replacement

Once your Pit Boss fuse is blown, you are left with no option but to change it. However, you have nothing to worry about because replacing the Pit Boss fuse is easy as pie.

pit boss pellet grill fuse

But before setting it to work, you should have a 5 AMP 120V fuse as the Pit Boss smoker uses it. Plus you have to know the position of your Pit Boss fuses.

Where is the Pit Boss Grill Fuse Located?

In the Pit Boss grill, the fuse is located on the control board. To be more specific, it is located near all the wires. If you are still confused, then this photo will surely help you realize the spot of the fuse.

where is the pit boss grill fuse located

Now that you know where the Pit Boss grill fuse is located, here’s how to replace it in only 7 steps,

Step 1: Start by unplugging the Pit Boss grill from all power sources.

Step 2: There are 4 to 6 screws at the bottom of the control panel. You have to detach them one by one. Once you have removed all the screws, the control panel will be exposed to you. Pull out the control panel from its place.

Step 3: Now, remove the fuse box cover. Cut the zip tie holding the wires, and you will see the fuse. Check if it’s really blown.

Step 4: Pull out the blown fuse with a pair of clippers. You can use your hands to pinch it out as well.

Step 5: Attach the new fuse in its place. Make sure it’s tightly installed in the control board. It is crucial to ensure that the fuse is perfectly set. Otherwise, the whole control board can get destroyed.

Step 6: After perfectly attaching the fuse, re-assemble each part back to its place.

Step 7: Connect your Pit Boss grill to the power supply and see if it’s working properly. If the fuse blows up again even after following all we have discussed in this article, you should contact the Pit Boss helpline immediately.


How much does Pit Boss fuse cost?

Pit Boss fuse costs around 10 USD.

What type of fuse does a Pit Boss grill use?

Pit Boss uses a 120V, 5 AMP fuse.

What does Pit Boss Grill fuse do?

The Pit Boss grill fuse protects the board control board from damage.

Why did my pit boss stop working?

Pit Boss grill can stop working due to a blown fuse, damaged burn pot, and faulty air-intake system.

Why is my Pit Boss pellet grill not igniting?

The most common reason why the Pit Boss pellet grill doesn’t ignite is the faulty extension cord, damaged electrical outlet, and faulty control board. A blown fuse can be a big reason as well.

Final Verdict:

The tiny fuse in your Pit Boss pellet grill is very significant. If it fails to work, then the whole unit won’t take a moment to collapse. So, follow our guide to find out the main culprit behind the Pit Boss grill keeps blowing the fuse issue and what to do to fix it.

If you have understood everything we have elaborated, you will have no problem fixing your unit. However, if you face any difficulty, then let us know in the comment below.
